The highway guardrail barrier can also be called high speed road wave beam guardrail, guardrail protector board, engineering wave guardrail board, high speed guardrail, guardrail board, double wave guardrail, bridge guardrail, bridge guardrail board, etc. Two wave waveform guardrails and three wave guardrails.
Descripción del producto
Highway guard rail roll forming machine
W Beam Crash Barrier Roll Forming Machine go through
Uncoiler →Straightener →Feeder→Guide device→Straightening→Hydraulic press breach device → roll forming machine → hydraulic punch →shear device (including knife)→ finished product rack
Guard rail production line Hydraulic hole punching system
Function：Hydraulic punch breach (Mould 1 set)
Structure: set the length, automatic length measurement, automatic positioning reaches the set distance stop action , hydraulic cylinder driven punching die, stamping automatic shutdown.
Hydraulic system working pressure：16MPa
Hydraulic station：30KW（ Hydraulic punch hole/shear use same station）

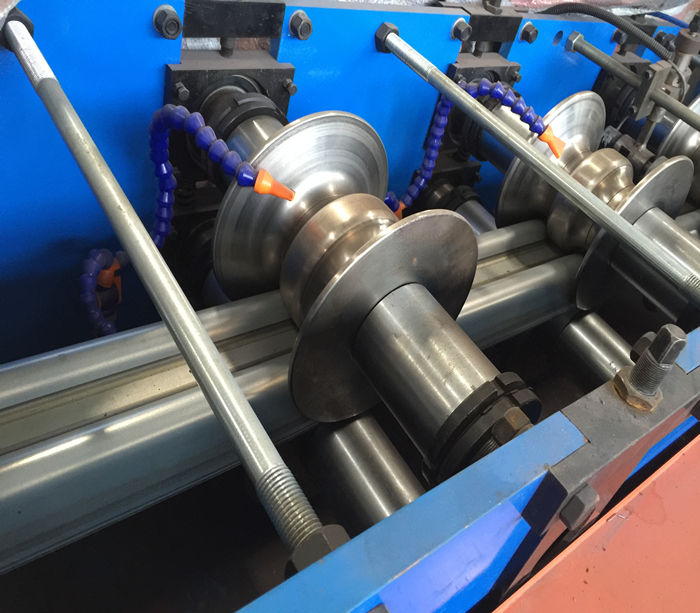

Main Forming machines (for panel width 260/380mm )
Forming Roller：22 stations，and add Rub-roll, To make sure the surface profile no scratches.
Gateway Panel：T.50mm steel, Heavy duty 。
Rolling speeding: 8-12 m/min。
Roller material：GCr15，overall quenching, hardness HRC56-62 ℃.
Main Roller ：￠95mm，45 #。
Equipment base: 45 # H type using welded steel plate.
Transmission: Gearbox drive.
Security: across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operator safety. And other gear in the chain and the staff could easily lead to injury transmission section covered with protective cover, to ensure the safety of workers.

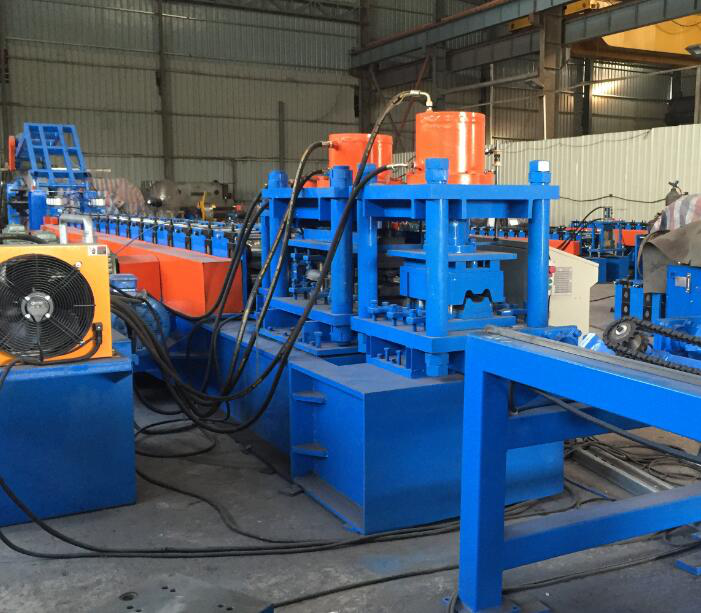

Hydraulic Punch Machine /Follow shear
Hydraulic Punch machine
Follow shear (Cut style)：Hydraulic cut(No blanking),Machine non-stop can cut product.
Knife material：Cr12，quenching hardness of up to HRC56-58 degrees.
Guardrail equipment Electrical control system
The entire line imported PLC control, LCD touch screen, man-machine interface. People interact with the PLC. Operator setting the program to run automatically (programmable control) and control process monitoring, production line operator control and modify the control parameters, and real-time monitoring the equipment status & parameters and fault indication. Workpiece length digital setting, adjustable length can be adjustable as well. Real-time monitoring of equipment operating status and fault indication.
Operation manual / automatic two styles. With manual and automatic switching function: In the manual mode, can be stand-alone operation, easy maintenance; In automatic mode, carry out full production run, in order to start; across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operating personnel Safety.
W Beam Crash Barrier Roll Forming Machine photo
Brand for accessorries
|1||Motor & Reducer||Domestic brands|
|2||The main key bearing||Domestic brands|
|8||Hydraulic system||Domestic brands|
Completed Guardrail Production line including Devices
|2||Hydraulic machine||1||With mould|
|5||Hydraulic machine||1||With mould|
|6||Follow Shear||1||Including knife|
Características del producto
Guard rail roll forming machine advantage
1, Highway guard rail production line for producing w beam barrier, 3 wave barrier, guardrail board.
2, PLC control system, automatically and easy handle.
3, Gcr15 roller with quench process, hardness reach HRC60-65 ℃.
4,Tracking cutting system with Cr12 Cutting blade.
Guarantee of Quality
Superda guarantee highway guard rail roll forming line design accordance with clients required drawing, machine is brand new. Specification and performance as stipulated in drawing and operation with good smooth.
Modelo y significado
Highway guard rail roll forming machine
Guard rail is steel material. It is a continuous structure in which corrugated steel guardrails are spliced to each other and supported by the main column. The effect of the vehicle on absorbing energy during its collision is not easy to be destroyed, and it can also protect the vehicle and the passengers.
The forming of the highway guardrail increases the appearance and increases the strength of the slab. Both are available. The automatic production line is extruded, the surface is clean and undamaged, and the corrosion resistance is extremely strong. The surface treatment is mature; anti-corrosion, anti-aging and anti-corrosion The characteristics of drying, high and low temperature, the service life in outdoor environment can reach 10-25 years; The product structure is concise, beautiful and practical, easy to transport, install, good anti-theft performance, limited by actual terrain, for mountain, slope, multi-bend The zone has strong adaptability and moderate cost, which is suitable for large-scale adoption.
Guard rail roll forming machine is most flexible and durable for making highway barriers.
Guardrail roll forming machine Parameter
|Usage||Highway Guardrail Production|
|Steel Material||Cold-rolled strip steel, Galvanized sheet|
|Forming Product width||260/380mm|
|Forming Mail Power (KW)||18.5KW*2PCS|
|Hydraulic Power (KW)||30KW|
Double wave corrugated guardrail, length 4320mm, plate width 310mm, wave depth 85mm, plate thickness 3mm/4mm.
Three-wave corrugated guardrail, length 4320mm, board width 506mm, wave depth 85mm, board thickness 4mm.
Special design guard rail customized is available.
